COMMELL Unveils LV-6718 Mini-ITX Motherboard with Intel Core Ultra Series 3 Processors

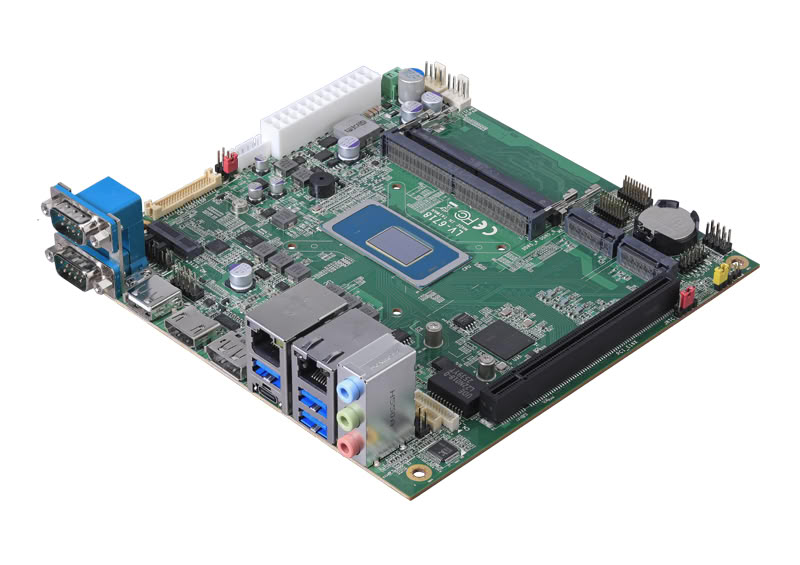

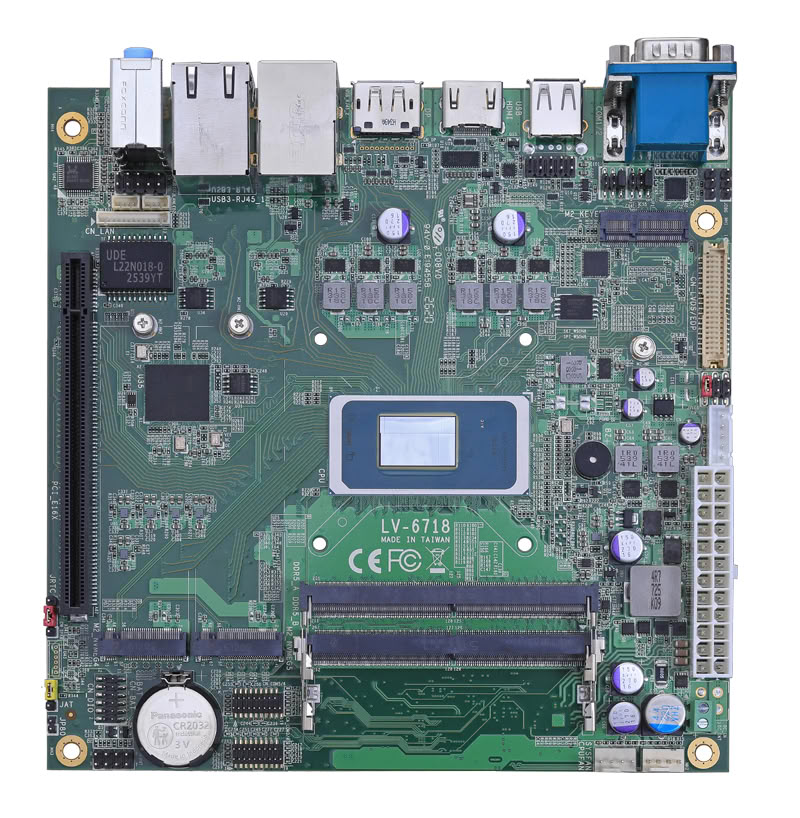

Taiwan Commate Computer Inc. (COMMELL), a recognized leader in industrial single board computers, has announced the launch of the LV-6718 Mini-ITX motherboard. Powered by the latest Intel Core Ultra Series 3 Processors (PTL-H / Panther Lake-H Platform), the LV-6718 is engineered for advanced industrial, edge AI, automation, and smart embedded applications. This compact Mini-ITX board delivers robust computing performance, high-speed DDR5 memory, advanced AI acceleration, extensive I/O connectivity, and versatile display options.

High-Performance Computing with DDR5 and AI Acceleration

The LV-6718 leverages Intel Core Ultra Series 3 Processors featuring a sophisticated 3D performance hybrid architecture. This design ensures exceptional efficiency for demanding embedded workloads. With dual DDR5 SO-DIMM slots supporting up to 128 GB of memory at 7200 MHz, the motherboard provides ample bandwidth for multitasking, data-intensive processing, industrial control, and AI-driven tasks.

Integrated Intel AI Boost NPU technology enables low-power AI acceleration and efficient offloading from the CPU and GPU. This makes the LV-6718 an optimal platform for edge AI inference, machine vision, smart automation, and intelligent industrial systems, where real-time processing and energy efficiency are critical.

Advanced Graphics and Flexible Multi-Display Support

Equipped with Intel Graphics, the LV-6718 supports up to four independent displays, offering a range of output options:

  • 1 x HDMI
  • 1 x DisplayPort++
  • 1 x LVDS/eDP
  • 1 x USB Type-C with DP Alt Mode

This flexible display configuration is ideal for industrial automation, digital signage, machine vision, surveillance, and embedded visualization systems, enabling high-quality graphics and real-time monitoring across multiple screens.

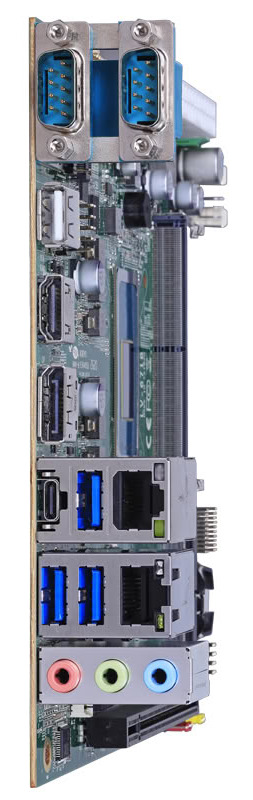

Comprehensive Expansion and Connectivity

The LV-6718 is designed to meet the connectivity and expansion needs of modern industrial and edge computing environments. Key features include:

  • USB Ports: 3 x USB 3.2 Gen 2, 3 x USB 2.0
  • Networking: 2 x 2.5GbE LAN, optional 1 x Intel 10GbE LAN
  • Serial Communication: 2 x RS232/422/485, 4 x RS232
  • Expansion Slots:
    • 1 x M.2 Key M (2280, PCIe Gen 4 NVMe)
    • 1 x M.2 Key M (2280, PCIe Gen 5 NVMe)
    • 1 x M.2 Key E (2230, Wi-Fi & Bluetooth module)
    • 1 x PCIe x16 Slot (Gen5X8 support)
  • Additional Features: 1 x 8-bit GPIO, 1 x SMBus, 1 x HD Audio, 1 x LCD inverter

This extensive I/O and expansion capability ensures seamless integration with a wide range of industrial peripherals and network infrastructures.

Industrial-Grade Reliability and Flexible Power Options

The LV-6718 supports both standard ATX 24-pin and DC 9~35V power inputs, allowing for flexible deployment across diverse industrial scenarios. Designed for reliability, the motherboard operates within a temperature range of 0°C to 60°C, making it suitable for demanding industrial and embedded environments.

Optimized for Next-Generation Industrial and Edge AI Applications

With its combination of Intel Core Ultra Series 3 performance, high-speed DDR5 memory, integrated AI acceleration, flexible four-display support, PCIe Gen 5 expansion, and optional 10GbE networking, the COMMELL LV-6718 Mini-ITX motherboard stands out as a powerful solution for next-generation industrial automation, AI vision, edge computing, smart manufacturing, and intelligent infrastructure applications.
