DeltaMate MPII Series: Premium CPU Water Blocks for Enthusiasts

The DeltaMate MPII series sets a new benchmark in CPU water cooling, combining advanced engineering with premium materials to deliver exceptional thermal performance. Designed for hardware enthusiasts and demanding users, these CPU water blocks are manufactured and assembled under rigorous quality controls to ensure reliability and longevity.

High-Quality Materials and Precision Engineering

Every component of the DeltaMate MPII water blocks is crafted from top-tier materials to maximize cooling efficiency and durability:

  • Nickel-Plated Copper Cold Plate: The ultra-high-performance cold plate is precision-milled from copper and finished with a nickel plating for optimal heat transfer and corrosion resistance.
  • Solid Brass Housing: The robust housing, also nickel-plated, features standard G1/4-inch ports for broad compatibility with custom cooling loops.
  • Borosilicate Glass Viewing Window: The window is made from durable borosilicate glass, with carefully sanded edges for a refined appearance and enhanced safety.
  • Anodized Aluminum Cover: The cover not only adds to the block’s sleek aesthetics but also provides additional protection.
  • RGB LED Lighting: Integrated RGB LEDs illuminate the water block, highlighting its elegant design. The lighting is fully addressable via a 3-pin ARGB header (+5V/DATA/GND) and can be synchronized with compatible motherboards.

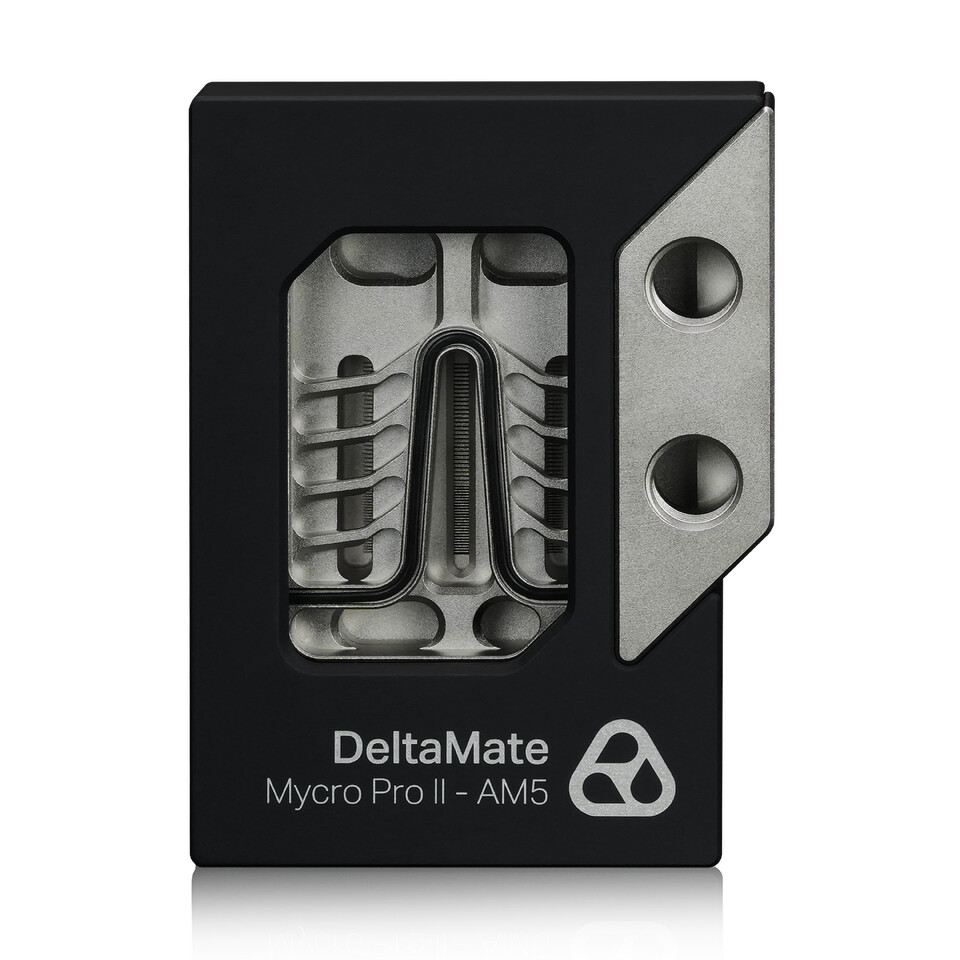

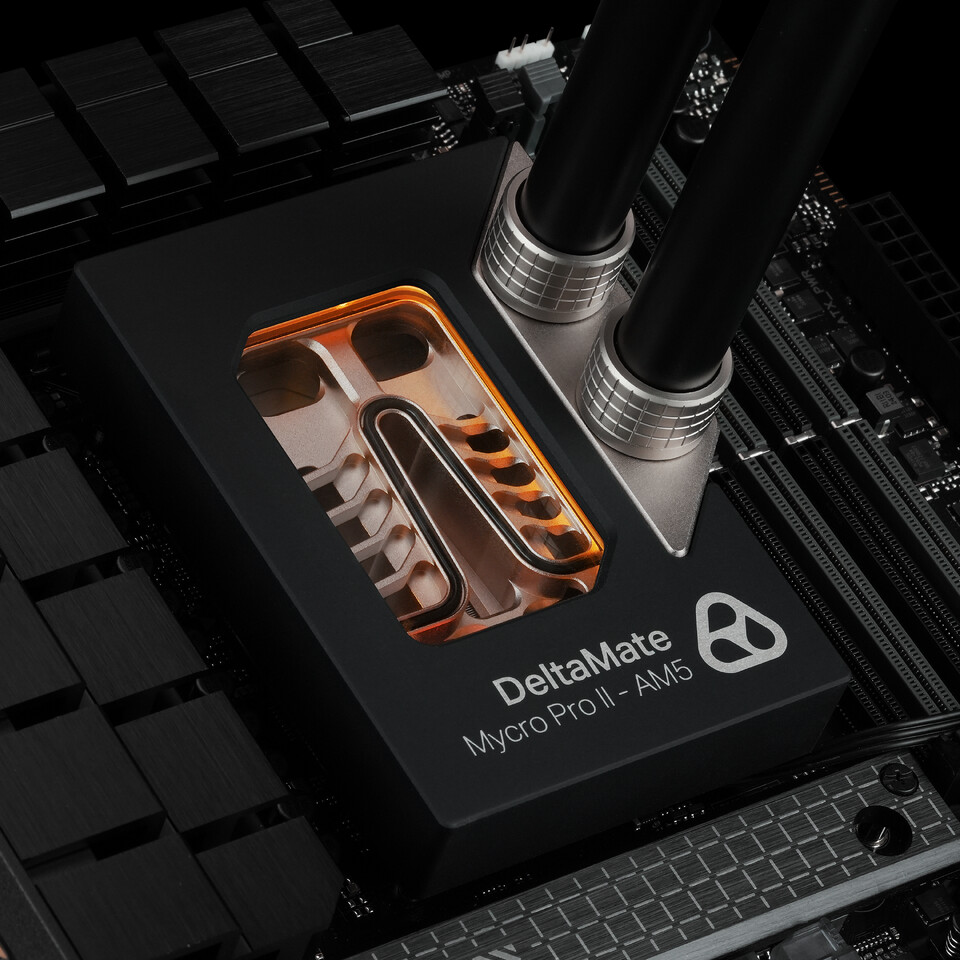

DeltaMate CPU Block - MPII AM5 Black: Optimized for AMD

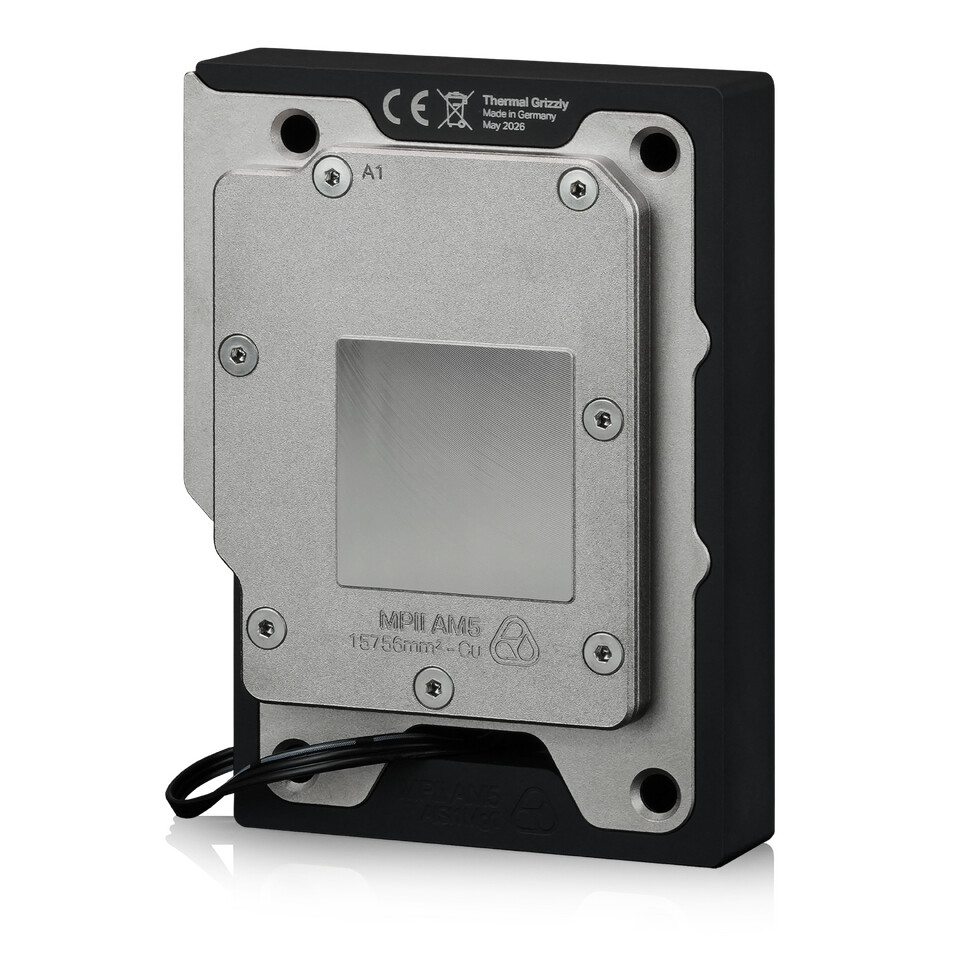

The DeltaMate CPU Block - MPII AM5 Black is engineered specifically for AMD’s AM5 socket, while maintaining backward compatibility with AM4. Its hybrid microfin structure is tailored for efficient heat dissipation:

  • CCD Microfins: Above the Core Complex Dies (CCDs), 25 microfins with a slot and fin width of just 0.2 mm each create a vast surface area, enabling rapid heat transfer from the hottest parts of the CPU.
  • I/O Die Microfins: In the region above the I/O die, 29 fins with a width of 0.4 mm ensure optimized coolant flow and distribution.
  • Durable Construction: The block features a full-metal housing, RGB-illuminated borosilicate glass window, and robust brass threaded inserts for secure installation.
  • Concealed Mounting: An included cover allows users to hide all screws and the mounting system for a clean, professional look.

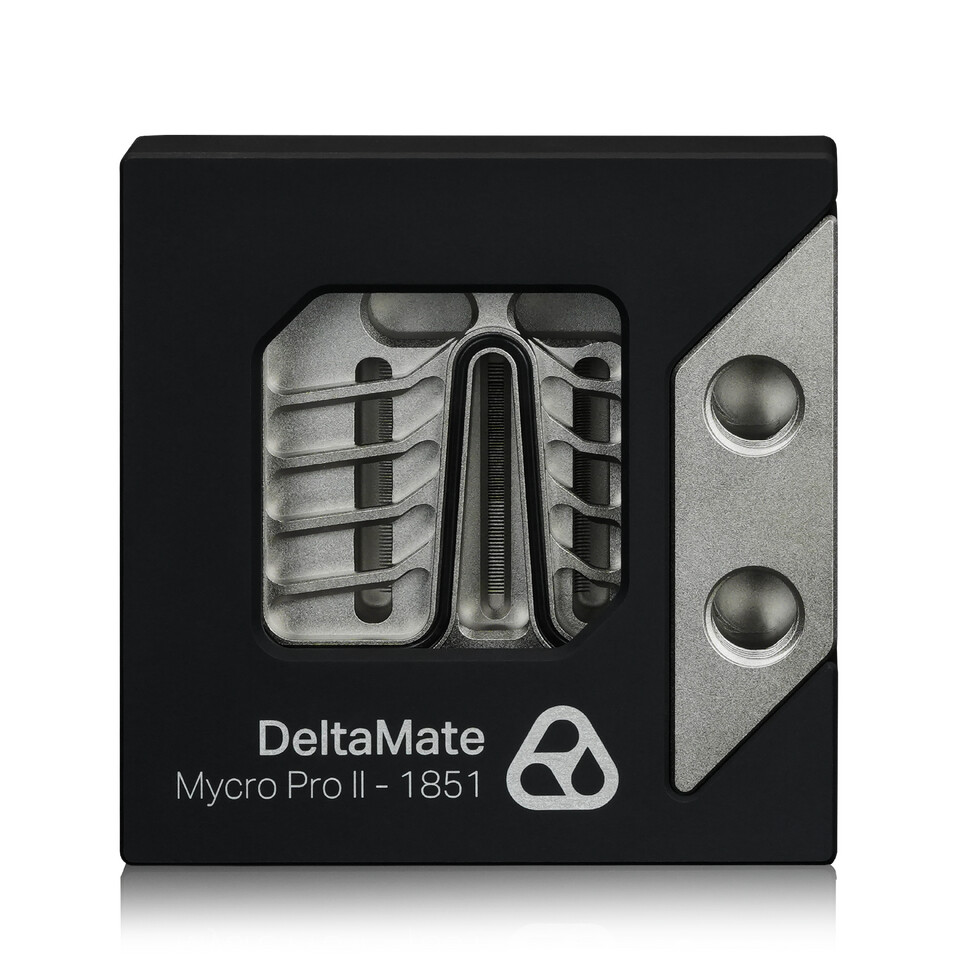

DeltaMate CPU Block - MPII Intel 1851 Black: Tailored for Intel

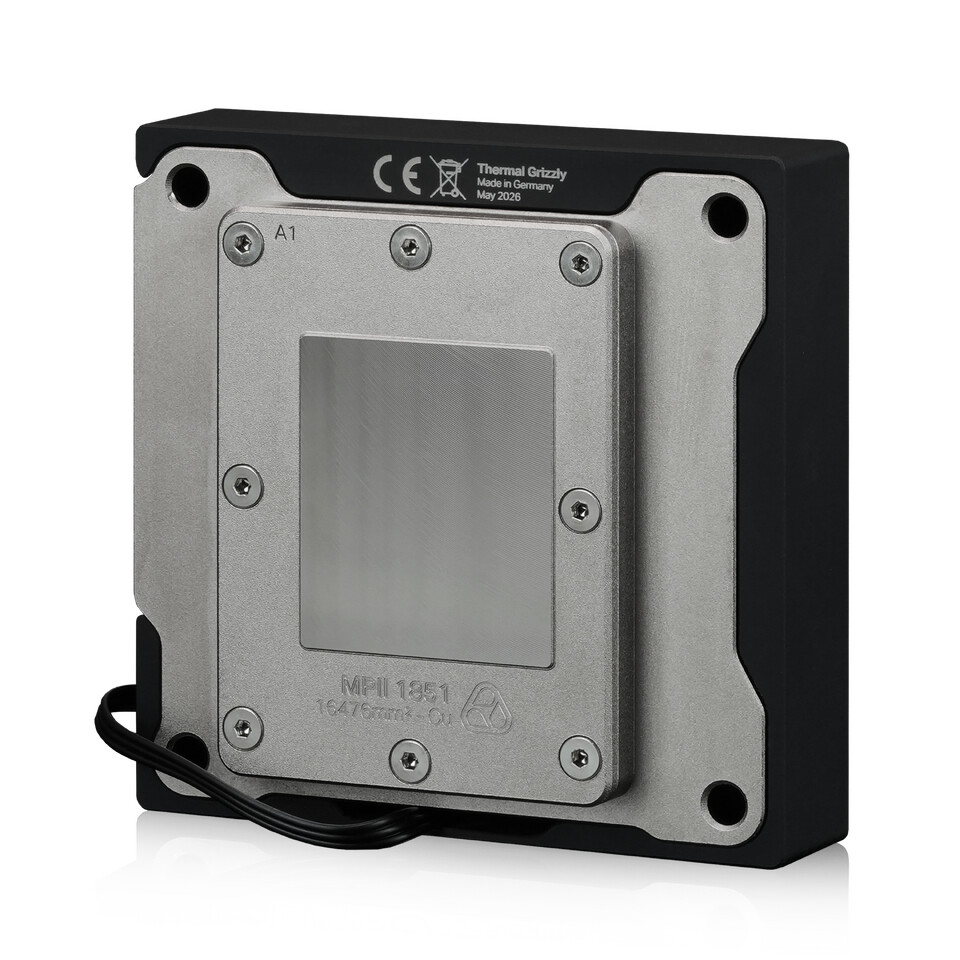

Designed for Intel’s LGA1851 socket and backward compatible with LGA1700, the DeltaMate CPU Block - MPII Intel 1851 Black features a hybrid microfin layout for superior cooling:

  • CPU Tile Microfins: Above the CPU tiles, 40 microfins with a width of 0.2 mm each provide extensive surface area for efficient heat dissipation.
  • Optimized Flow Distribution: A total of 30 fins with a width of 0.3 mm are positioned above and below the CPU tile area to enhance coolant flow and thermal performance.
  • Premium Build: Like its AMD counterpart, this model includes a full-metal housing, RGB-illuminated borosilicate glass window, and durable brass threaded inserts with standard G1/4" ports.
  • Optional Cover: The included cover conceals all screws and mounting hardware for a streamlined appearance.

Setting New Standards in CPU Water Cooling

The DeltaMate MPII series exemplifies the latest advancements in CPU water block design, offering ultra-high-performance cooling for both AMD and Intel platforms. With meticulous attention to material quality, thermal engineering, and visual appeal, these water blocks are an ideal choice for enthusiasts seeking top-tier performance and reliability in their custom liquid cooling setups.
